Thread Class Reference

Thread. More...

#include <thread.h>

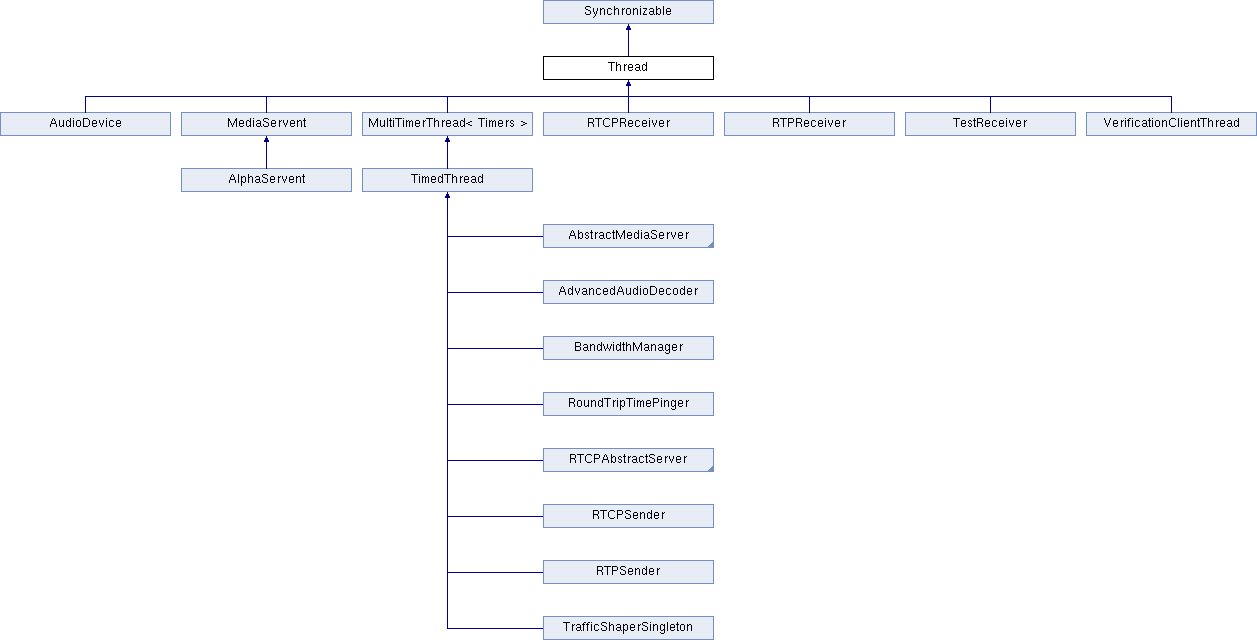

Inheritance diagram for Thread:

List of all members.

Public Member Functions
	Thread (const char *name="Thread", const cardinal flags=TF_CancelDeferred)
virtual	~Thread ()
bool	running () const
pid_t	getPID () const
virtual bool	start (const char *name=NULL)
virtual void *	stop ()
void *	join ()
virtual void	cancel ()
Static Public Member Functions
static card64	delay (const card64 delayTimeout, const bool interruptable=false)
static cardinal	setCancelState (const cardinal state)
Static Public Attributes
static const cardinal	TF_CancelAsynchronous = 0
static const cardinal	TF_CancelDeferred = (1 << 0)
static const cardinal	TCS_CancelEnabled = PTHREAD_CANCEL_ENABLE
static const cardinal	TCS_CancelDisabled = PTHREAD_CANCEL_DISABLE
static const cardinal	TCS_CancelDeferred = PTHREAD_CANCEL_DEFERRED
Protected Member Functions
virtual void	testCancel ()
virtual void	run ()=0
Static Protected Member Functions
static void	exit (void *result=NULL)
static void	yield ()
Protected Attributes
pthread_t	PThread
pid_t	PID
Static Private Member Functions
static void *	go (void *argument)
Private Attributes
cardinal	Flags
pthread_mutex_t	StartupMutex
pthread_cond_t	StartupCondition

---

Detailed Description

Thread.

This abstract class realizes threads based on Linux's pthreads. The user of this class has to implement run(). Synchronization is implemented by inheriting Synchronizable. IMPORTANT: Do *not* use Thread methods within async signal handlers. This may cause deadlocks. See PThread's pthread_mutex_lock man-page, section "Async Signal Safety" for more information!

Author:

Thomas Dreibholz

Version:

1.0

See also:

Synchronizable

---

Constructor & Destructor Documentation

Thread::Thread	(	const char *	name = "Thread",
		const cardinal	flags = TF_CancelDeferred
	)

Constructor. A new thread will be created but *not* started! To start the new thread, call start().

Parameters:

name	Thread name.
flags	Flags for the thread to be created.

See also:

start

Thread::~Thread

(

)

[virtual]

Destructor. The thread will be stopped (if running) and deleted.

---

Member Function Documentation

void Thread::cancel

(

)

[virtual]

Cancel the thread.

Reimplemented in MultiTimerThread< Timers >.

card64 Thread::delay	(	const card64	delayTimeout,
		const bool	interruptable = false
	)		[static]

Delay execution of current thread for a given timeout. This function uses nanosleep(), so no signals are affected.

Parameters:

delayTime	Timeout in microseconds.
interruptable	true, if delay may be interrupted by signals; false otherwise.

Returns:

Remaining delay, if interrupted; 0 otherwise.

static void Thread::exit

(

void *

result = NULL

)

[inline, static, protected]

Exit current thread.

Parameters:

result

Result to return.

pid_t Thread::getPID

(

)

const [inline]

Get thread's PID.

void * Thread::go

(

void *

argument

)

[static, private]

void * Thread::join

(

)

Wait for the thread to be finished.

Returns:

Return value from joined thread.

virtual void Thread::run

(

)

[protected, pure virtual]

The virtual run() method, which contains the thread's implementation. It has to be implemented by classes, which inherit Thread.

Implemented in TestReceiver, MediaServent, MultiTimerThread< Timers >, AudioDevice, RTPReceiver, RTCPReceiver, and VerificationClientThread.

bool Thread::running

(

)

const [inline]

Check, if the thread is running.

Returns:

true, if the thread is running, false otherwise

static cardinal Thread::setCancelState

(

const cardinal

state

)

[inline, static]

Enable or disable cancelability of calling thread. The previous state is returned. Important note: The result may include additional state information, depending on the operating system. This state can be restored by giving this complete information to a setCancelState() call.

Parameters:

enabled

TCS_CancelEnable to enable cancellation; TCS_CancelDisable otherwise.

Returns:

Old state.

bool Thread::start

(

const char *

name = NULL

)

[virtual]

Start the thread, if not already started.

Parameters:

name	Thread name (NULL for default).

Returns:

true, if the thread has been started; false, if not.

void * Thread::stop

(

)

[virtual]

Stop the thread, if not already stopped. If the thread flag ThreadCancelAsynchronous is set, it will be stopped immediately. If the flag ThreadCancelDeferred is set, it will be stopped when a cancellation point is reached (-> see pthreads documentation). testCancel() is such a cancellation point.

See also:

testCancel

Returns:

Return value from stopped thread.

Reimplemented in AbstractMediaServer, MultiTimerThread< Timers >, RTCPAbstractServer, and VerificationClientThread.

void Thread::testCancel

(

)

[protected, virtual]

Test for cancellation. If the thread received a cancel signal, it will be cancelled.

static void Thread::yield

(

)

[inline, static, protected]

Voluntarily move current thread to end of queue of threads waiting for CPU time (sched_yield() call). This will result in scheduling to next waiting thread, if there is any.

---

Member Data Documentation

cardinal Thread::Flags [private]

pid_t Thread::PID [protected]

pthread_t Thread::PThread [protected]

pthread_cond_t Thread::StartupCondition [private]

pthread_mutex_t Thread::StartupMutex [private]

const cardinal Thread::TCS_CancelDeferred = PTHREAD_CANCEL_DEFERRED [static]

const cardinal Thread::TCS_CancelDisabled = PTHREAD_CANCEL_DISABLE [static]

const cardinal Thread::TCS_CancelEnabled = PTHREAD_CANCEL_ENABLE [static]

const cardinal Thread::TF_CancelAsynchronous = 0 [static]

const cardinal Thread::TF_CancelDeferred = (1 << 0) [static]

---

The documentation for this class was generated from the following files:

• thread.h
• thread.cc
