#include <socketaddress.h>

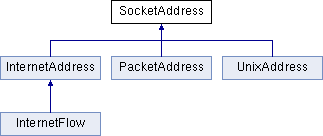

Inheritance diagram for SocketAddress:

Public Types
enum	PrintFormat { PF_Address = (1 << 0), PF_Hostname = (1 << 1), PF_Full = (PF_Address \| PF_Hostname), PF_HidePort = (1 << 15), PF_Legacy = (1 << 16), PF_Default = (PF_Address \| PF_Legacy) }
Public Member Functions
virtual	~SocketAddress ()
virtual SocketAddress *	duplicate () const =0
virtual void	reset ()=0
virtual bool	isValid () const =0
cardinal	getPrintFormat () const
void	setPrintFormat (const cardinal format)
virtual card16	getPort () const =0
virtual void	setPort (const card16 port)=0
virtual integer	getFamily () const =0
virtual String	getAddressString (const cardinal format=PF_Default) const =0
virtual cardinal	getSystemAddress (sockaddr *buffer, const socklen_t length, const cardinal type=AF_UNSPEC) const =0
virtual bool	setSystemAddress (const sockaddr *address, const socklen_t length)=0
Static Public Member Functions
static SocketAddress *	getLocalAddress (const SocketAddress &peer)
static SocketAddress *	createSocketAddress (const integer family)
static SocketAddress *	createSocketAddress (const cardinal flags, const String &name)
static SocketAddress *	createSocketAddress (const cardinal flags, const String &name, const card16 port)
static SocketAddress *	createSocketAddress (const cardinal flags, sockaddr *address, const socklen_t length)
static SocketAddress **	newAddressList (const cardinal entries)
static void	deleteAddressList (SocketAddress **&addressArray)
Static Public Attributes
static const cardinal	MaxSockLen
Protected Attributes
cardinal	Format
Friends
std::ostream &	operator<< (std::ostream &os, const SocketAddress &sa)

Detailed Description

Socket Address.

This class is an interface for a socket address.

Author:: Thomas Dreibholz

Version:: 1.0

Member Enumeration Documentation

enum SocketAddress::PrintFormat

setPrintFormat() printing formats.

Enumerator:

PF_Address	Print address.
PF_Hostname	Print hostname, if possible. Otherwise, print address.
PF_Full	Print both, address and hostname (if resolvable).
PF_HidePort	Hide port number.
PF_Legacy	Legacy mode: Do not print IPv4 addresses on IPv6-capable hosts as IPv4-mapped address. That is, 1.2.3.4 instead of ::ffff:1.2.3.4.
PF_Default	Default print format.

Constructor & Destructor Documentation

SocketAddress::~SocketAddress ( ) [virtual]

Destructor.

Member Function Documentation

SocketAddress * SocketAddress::createSocketAddress ( const integer family ) [static]

Create SocketAddress object for given address family.

Parameters:

family Address family (e.g. AF_INET or AF_UNIX).

Returns:: SocketAddress object or NULL in case of failure.

SocketAddress * SocketAddress::createSocketAddress	(	const cardinal	flags,
		const String &	name
	)		`[static]`

Create SocketAddress object from address string.

Parameters:

flags	flags
string	Address string.

Returns:: SocketAddress object or NULL in case of failure.

SocketAddress * SocketAddress::createSocketAddress	(	const cardinal	flags,
		const String &	name,
		const card16	port
	)		`[static]`

Create SocketAddress object from address string and port number.

Parameters:

flags	flags
string	Address string.
port	Port number.

Returns:: SocketAddress object or NULL in case of failure.

SocketAddress * SocketAddress::createSocketAddress	(	const cardinal	flags,
		sockaddr *	address,
		const socklen_t	length
	)		`[static]`

Create SocketAddress object from system's sockaddr structure.

Parameters:

flags	flags.
address	sockaddr.
length	Length of sockaddr.

Returns:: SocketAddress object or NULL in case of failure.

void SocketAddress::deleteAddressList ( SocketAddress **& addressArray ) [static]

Deallocate NULL-terminated list of SocketAddress objects.

Parameters:

addressArray Address list.

See also:: getLocalAddresses; accept

virtual SocketAddress* SocketAddress::duplicate ( ) const [pure virtual]

Create a duplicate of the SocketAddress object.

Returns:: Copy of SocketAddress object.

Implemented in InternetAddress, PacketAddress, UnixAddress, and InternetFlow.

virtual String SocketAddress::getAddressString ( const cardinal format = PF_Default ) const [pure virtual]

Get address string.

Returns:: Address string.

Implemented in InternetAddress, PacketAddress, UnixAddress, and InternetFlow.

virtual integer SocketAddress::getFamily ( ) const [pure virtual]

Get family of address.

Returns:: Address family (e.g. AF_INET or AF_UNIX).

Implemented in InternetAddress, PacketAddress, and UnixAddress.

SocketAddress * SocketAddress::getLocalAddress ( const SocketAddress & peer ) [static]

Get the local host address. The parameter peer gives the address of the other host.

Parameters:

peer	Address of peer.

Returns:: Local SocketAddress or NULL in case of an error.

Examples: localhost => localhost address (127.0.0.1 or ::1). ethernet-host => ethernet interface address. internet-address => dynamic-ip address set by pppd.

virtual card16 SocketAddress::getPort ( ) const [pure virtual]

Get port of address.

Returns:: Port.

Implemented in InternetAddress, PacketAddress, and UnixAddress.

cardinal SocketAddress::getPrintFormat ( ) const [inline]

Get printing format.

Returns:: Print format.

virtual cardinal SocketAddress::getSystemAddress	(	sockaddr *	buffer,
		const socklen_t	length,
		const cardinal	type = `AF_UNSPEC`
	)		const `[pure virtual]`

Get system's sockaddr structure for the address.

Parameters:

buffer	Buffer to write sockaddr to.
length	Length of buffer.
type	Socket address type, e.g. AF_INET or AF_INET6.

Returns:: Length of written sockaddr structure.

Implemented in InternetAddress, PacketAddress, UnixAddress, and InternetFlow.

virtual bool SocketAddress::isValid ( ) const [pure virtual]

Check, if address is valid.

Returns:: true, if address is valid; false otherwise.

Implemented in InternetAddress, PacketAddress, and UnixAddress.

SocketAddress ** SocketAddress::newAddressList ( const cardinal entries ) [static]

Allocate memory for NULL-terminated SocketAddress list with given number of entries.

Parameters:

entries Number of entries.

Returns:: Address list or NULL, if out of memory.

virtual void SocketAddress::reset ( ) [pure virtual]

Reset address.

Implemented in InternetAddress, PacketAddress, UnixAddress, and InternetFlow.

virtual void SocketAddress::setPort ( const card16 port ) [pure virtual]

Set port of address.

Implemented in InternetAddress, PacketAddress, and UnixAddress.

void SocketAddress::setPrintFormat ( const cardinal format ) [inline]

Set printing format.

Parameters:

format Print format.

virtual bool SocketAddress::setSystemAddress	(	const sockaddr *	address,
		const socklen_t	length
	)		`[pure virtual]`

Initialize the socket address from the system's sockaddr structure.

Parameters:

address	sockaddr.
length	Length of sockaddr.

Implemented in InternetAddress, PacketAddress, and UnixAddress.

Friends And Related Function Documentation

std::ostream& operator<<	(	std::ostream &	os,
		const SocketAddress &	sa
	)		`[friend]`

Output operator.

Member Data Documentation

cardinal SocketAddress::Format [protected]

Print format.

const cardinal SocketAddress::MaxSockLen [static]

Initial value:

      (sizeof(sockaddr_un) > sizeof(sockaddr_storage)) ? sizeof(sockaddr_un) : sizeof(sockaddr_storage)

Maximum sockaddr length in bytes.
