EncoderInterface Class Reference

Encoder Interface. More...

#include <encoderinterface.h>

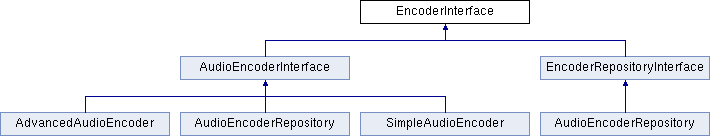

Inheritance diagram for EncoderInterface:

List of all members.

Public Member Functions
virtual const card16	getTypeID () const =0
virtual const char *	getTypeName () const =0
virtual void	activate ()=0
virtual void	deactivate ()=0
virtual void	reset ()=0
virtual bool	checkInterval (card64 &time, bool &newRUList)=0
virtual bool	prepareNextFrame (const cardinal headerSize, const cardinal maxPacketSize, const cardinal flags=0)=0
virtual cardinal	getNextPacket (EncoderPacket *packet)=0
virtual double	getFrameRate () const =0
virtual AbstractQoSDescription *	getQoSDescription (const cardinal pktHeaderSize, const cardinal pktMaxSize, const card64 offset)=0
virtual void	updateQuality (const AbstractQoSDescription *aqd)=0

---

Detailed Description

Encoder Interface.

This class is the interface for an encoder.

Author:

Thomas Dreibholz

Version:

1.0

---

Member Function Documentation

virtual void EncoderInterface::activate

(

)

[pure virtual]

Activate the encoder. Usage example: Start an encoder thread.

Implemented in AudioEncoderRepository, AdvancedAudioEncoder, and SimpleAudioEncoder.

virtual bool EncoderInterface::checkInterval	(	card64 &	time,
		bool &	newRUList
	)		[pure virtual]

Check, when prepareNextFrame() call reaches a new interval.

Parameters:

time	Reference to store time to next interval in microseconds.
Reference	to store true, if new resource/utilization list has been reached since last call; false otherwise.

Returns:

true, if new interval has been reached since last call; false otherwise.

Implemented in AudioEncoderRepository, AdvancedAudioEncoder, and SimpleAudioEncoder.

virtual void EncoderInterface::deactivate

(

)

[pure virtual]

Deactivate the encoder. Usage example: Stop an encoder thread.

Implemented in AudioEncoderRepository, AdvancedAudioEncoder, and SimpleAudioEncoder.

virtual double EncoderInterface::getFrameRate

(

)

const [pure virtual]

Get frame rate.

Returns:

Frame rate.

Implemented in AudioEncoderRepository, AdvancedAudioEncoder, and SimpleAudioEncoder.

virtual cardinal EncoderInterface::getNextPacket

(

EncoderPacket *

packet

)

[pure virtual]

Get next packet from current frame. The maximum payload length of the packet (the size of packet->Buffer) is in packet->MaxLength.

Parameters:

packet	EncoderPacket structure.
buffer	Buffer of the packet to write the data into.
maxLength	Maximum length of the packet

Returns:

Real length of the data written into the buffer or 0, if there is no more data of the current frame.

Implemented in AudioEncoderRepository, AdvancedAudioEncoder, and SimpleAudioEncoder.

virtual AbstractQoSDescription* EncoderInterface::getQoSDescription	(	const cardinal	pktHeaderSize,
		const cardinal	pktMaxSize,
		const card64	offset
	)		[pure virtual]

Get QoS description. Important note: This result is a global pointer, it becomes invalid when encoder is deleted!

Parameters:

pktHeaderSize	Packet header size.
pktMaxSize	Maximum packet size.
offset	RTP position offset.

Returns:

QoS Description.

Implemented in AudioEncoderRepository, AdvancedAudioEncoder, and SimpleAudioEncoder.

virtual const card16 EncoderInterface::getTypeID

(

)

const [pure virtual]

Get the encoder's type ID.

Returns:

Encoder's type ID.

Implemented in AudioEncoderRepository, AdvancedAudioEncoder, and SimpleAudioEncoder.

virtual const char* EncoderInterface::getTypeName

(

)

const [pure virtual]

Get the encoder's name.

Returns:

Encoder's name

Implemented in AudioEncoderRepository, AdvancedAudioEncoder, and SimpleAudioEncoder.

virtual bool EncoderInterface::prepareNextFrame	(	const cardinal	headerSize,
		const cardinal	maxPacketSize,
		const cardinal	flags = 0
	)		[pure virtual]

Prepare next frame. Usage example: Read the next frame from file, transform it into packages for transport.

Parameters:

headerSize	Size of underlying protocol's header (e.g. RTP packet)
maxPacketSize	Maximum size of packet.
flags	Encoder-specific flags (e.g. compression or encryption).

Returns:

true, if there was a next frame; false, if not.

Implemented in AudioEncoderRepository, AdvancedAudioEncoder, and SimpleAudioEncoder.

virtual void EncoderInterface::reset

(

)

[pure virtual]

Reset the encoder. Usage example: Reset an encoder thread.

Implemented in AudioEncoderRepository, AdvancedAudioEncoder, and SimpleAudioEncoder.

virtual void EncoderInterface::updateQuality

(

const AbstractQoSDescription *

aqd

)

[pure virtual]

Update encoder quality to changes made in QoS description returned by getQoSDescription().

See also:

EncoderInterface::getQoSDescription

Implemented in AudioEncoderRepository, AdvancedAudioEncoder, and SimpleAudioEncoder.

---

The documentation for this class was generated from the following file:

• encoderinterface.h
